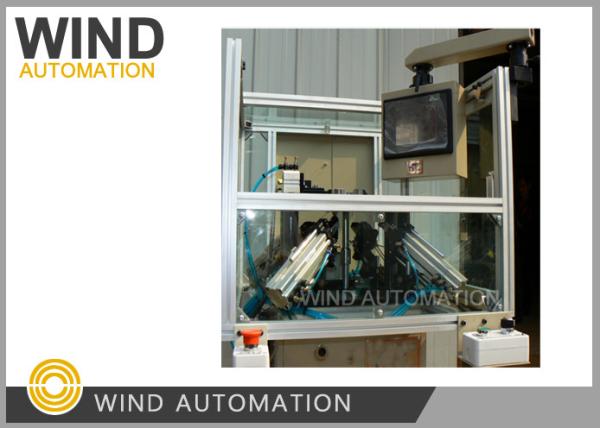

0.06mm To 1.0mm AWG18 To AWG42 Wire 4 Pole Stator 4 Needle Winding Machine WIND-1A-TSM
Application:
Four poles BLDC stators
Competitive Advantages:
1. Wind 4 slots per time at 400RPM, fast
2. Automatic winding, automatic cutting wires
3. One local motor manufacture brought over 40pcs,
and only 3 to 4 operators are needed to operate these machines
Parameter:
Wire diameter:0.08~1.00mm
Stator ID:15~65mm
Core length:7-90mm
Turns No.0-99999
Operation option: stepping,Auto
Stator poles: 4poles
Air pressure:5~7kg/square centi-meter
Power:2KW, AC220V 50/60Hz
Dimension: 1550*900*1450mm
Weight: about 450kgs
Winder Major Parts:
Big power Stepper motor
Mitsubishi PLC
Embedded human - machine interface
AIRTAC cylinder
Suggestion:
Accordingly to stator winding way, different types of needle winding machine can have one , two , three,
four needles.
For 4 poles stator, we usually suggest customer with 4needles winding machine WIND-1A-TSM,
it can get the stator fast even there will be 4pcs begining wire and 4pcs ending wire needed to be
connected,
The needle is driven by cam device rotation which drive the winding spindle,
The machine WIND-1A-TSM major electrical parts such as Mitsubishi PLC, Embedded human - machine
interface, Airtac cylinder and so on have CE mark,
and we exported to Europe company such as France, Romania and so on,
May I know the reason that you'd prefer 1 needle or 2 needes, is it because of the bridge wire showed on
photo?
Basic machine type WIND-1-TSM with 1 needle is for production of prototypes of stators with small
quantity,
It can wind the slot one by one, and you may need to put the bridge wire by hand if you use the type
WIND-1-TSM as your stator insulation cap interfre the machine place bridge wire automatically.
The poles of shaded pole induction motor consist of 4 slots, which are cut across the laminations.
The smaller part of the slotted pole is short-circuited with the help of a coil. The coils are made up of
copper wire and it is highly inductive in nature. This coil is known as shading coil. The part of the pole
which has the coil is called the shaded part and the other part of the pole is called unshaded part.
Motor winding machine manufacturer sample needed:
1. Stator stack samples each 5pcs
2. Copper wire gauge each 1roll
3. Stator lamination drawing and winding drawing
